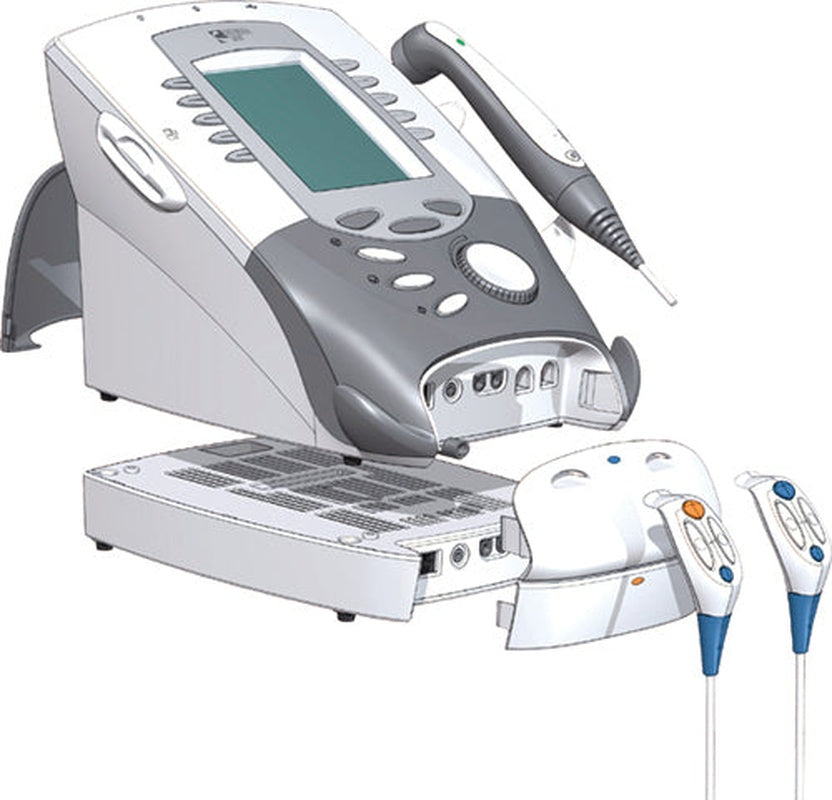

Intelect Legend XT Four Channel Electrotherapy System with LCD

$6,251.18
Variant: 4-Channel Electrotherapy
Shipping

Free Shipping

Free 30-day returns

24x7 Email Support

We offer fast and reliable shipping to ensure your order reaches you as quickly as possible.

Return Period: You have 30 days from the date of purchase to return items.

Product Description

Physical therapy and rehabilitation clinics require versatile electrotherapy systems that adapt to diverse patient needs while maintaining clinical precision. The Intelect Legend XT delivers multi-waveform treatment capabilities with expandable channel architecture, enabling clinicians to manage complex treatment protocols efficiently through a single integrated platform equipped with an intuitive LCD interface.

Key Features

  • Modular channel expansion starts with two independent channels, upgradable to four channels for simultaneous multi-patient or multi-site treatments.
  • Six clinical waveforms include Interferential, Premodulated, High Volt, Russian, Symmetrical Biphasic, and Microcurrent for comprehensive pain management and tissue stimulation.
  • High-contrast 5-inch (13 cm) FSTN LCD display provides clear visibility of treatment parameters in any lighting condition.
  • Patient Data Card documentation system stores treatment history and customized protocols for consistent, repeatable therapy sessions.
  • Dual-frequency ultrasound operates at 1 MHz or 3.3 MHz with selectable pulsed or continuous duty cycles for deep or superficial tissue targeting.
  • Optional color-coded operator remotes enable real-time amplitude adjustments, pause, start, and stop functions without interrupting patient positioning.

Specifications

Specification Details
Available Configurations 2-Channel or 4-Channel Electrotherapy; 2-Channel or 4-Channel Combination (with ultrasound); Optional mobile cart
Electrotherapy Waveforms Interferential, Premodulated, High Volt, Russian, Symmetrical Biphasic, Microcurrent
Ultrasound Frequencies 1 MHz, 3.3 MHz (dual-frequency)
Ultrasound Duty Cycles 10%, 20%, 50%, 100% (pulsed or continuous)
Soundhead Applicator Sizes 1 cm², 2 cm², 5 cm², 10 cm² (ergonomic, watertight design)
Display 5-inch (13 cm) FSTN LCD monochromatic
Channel Configuration Two independent channels, expandable to four
Data Management Patient Data Cards for treatment documentation and custom protocols

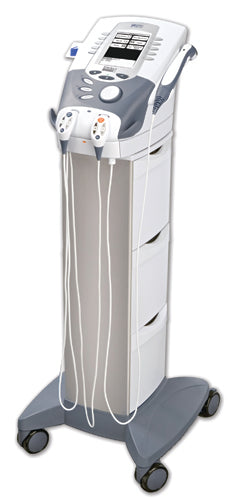

Optional Accessories Operator remotes (color-coded per channel), battery module, light therapy module, mobile cart

Ideal For

  • Outpatient physical therapy clinics managing high patient volumes with varied treatment needs
  • Hospital rehabilitation departments requiring simultaneous multi-patient treatments across different modalities
  • Sports medicine facilities treating acute injuries and chronic pain conditions with targeted waveform selection
  • Chiropractic practices integrating electrotherapy and ultrasound for musculoskeletal interventions
  • Academic training programs teaching therapeutic modality application with documented protocol storage

What's Included

  • Intelect Legend XT base unit with selected channel configuration (2 or 4 channels)
  • LCD touchscreen control interface with monochromatic display
  • Electrotherapy lead wires and electrode connections
  • Ultrasound soundhead applicators (1 cm², 2 cm², 5 cm², 10 cm²) — included with Combination configurations
  • Patient Data Cards for treatment documentation
  • User manual and quick-reference protocol guide
  • Power cord and grounding cable
  • Mobile cart with accessory storage (included with cart configurations)

Care Instructions

  • Wipe LCD screen and control panel with soft, lint-free cloth dampened with approved medical-grade disinfectant after each use.
  • Clean watertight ultrasound soundheads with mild soap solution and rinse thoroughly; dry completely before storage.
  • Inspect lead wires and electrode connections monthly for wear, fraying, or exposed conductors; replace damaged components immediately.
  • Store unit in temperature-controlled environment (50-85°F) away from moisture and direct sunlight when not in use.
  • Calibrate ultrasound transducers annually according to manufacturer's service schedule to maintain output accuracy.
  • Keep Patient Data Cards in protective sleeves; avoid bending or exposure to magnetic fields.

FAQs

Q: Can I add channels or ultrasound capability after initial purchase?

A: Yes, the modular design supports field upgrades including two additional electrotherapy channels, light therapy modules, or battery packs without replacing the base unit.

Q: What's the difference between Electrotherapy and Combination configurations?

A: Electrotherapy configurations deliver only electrical stimulation modalities, while Combination units integrate both electrotherapy and dual-frequency ultrasound with four soundhead sizes for comprehensive treatment options.

Q: How do operator remotes improve clinical workflow?

A: Color-coded remotes enable therapists to adjust amplitude, pause, or stop treatments from patient bedside without returning to the main unit, improving safety and efficiency during manual therapy.

Q: Are the soundheads suitable for underwater therapy applications?

A: Yes, all four soundhead applicators feature watertight construction rated for submersion in aquatic therapy environments, expanding treatment versatility for hydrotherapy protocols.

Q: Can I store custom treatment protocols for individual patients?

A: Absolutely. The Patient Data Card system documents treatment parameters and stores user-defined protocols for each patient, ensuring consistency across therapy sessions and simplifying repeat treatments.
