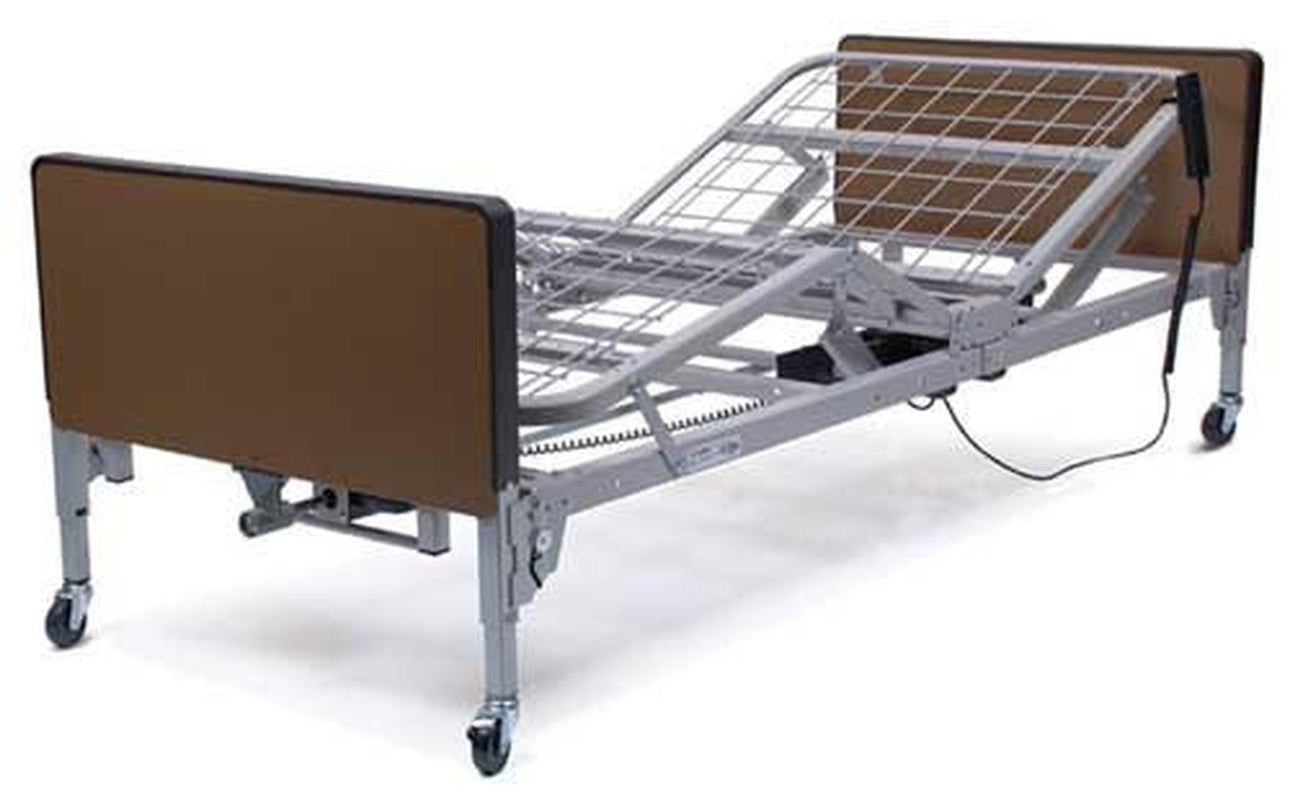

Drive Delta Full Electric Hospital Bed with Mattress and Rails

Managing extended bed rest at home becomes significantly easier with a full electric hospital bed that adjusts at the touch of a button. The Drive Delta 1000 delivers clinical-grade positioning control with electric height adjustment, head elevation, and knee articulation—all designed to support patient comfort, caregiver safety, and seamless bedroom integration with wood-grain panels that resist scratches and breakage.

Key Features

• Full electric operation adjusts head, foot, and overall bed height using a large-button hand pendant for intuitive control
• Universal compatibility with interchangeable headboards and footboards fits most manufacturers' bed ends, old and new, via transition box design
• 450 lb weight capacity with channel frame construction provides strength while reducing overall bed weight for easier setup
• Emergency battery backup uses a 9-volt battery to lower head and foot sections up to nine times during power outages
• Variable deck height ranges from 9.5 to 23.5 inches to accommodate both standard and low-bed positioning for fall prevention
• Self-contained motor minimizes operational noise and allows installation or removal without disturbing the patient

Specifications

Ideal For

• Home recovery following surgery, injury, or hospitalization requiring extended bed rest
• Long-term care for patients with chronic conditions needing frequent position changes
• Caregiver support in reducing physical strain during patient transfers and daily care tasks
• Fall risk management with low-bed positioning and side rail options for patient safety
• Hospice and palliative care settings where comfort adjustments improve quality of life

What's Included

• Drive Delta 1000 electric bed frame with channel construction
• Pre-installed height-adjustable motor on foot section
• Reversible foam mattress (included with both variants)
• Side rails: half-length clamp-on rails OR full-length rails (depending on variant selected)
• Hand pendant with large button controls
• Headboard and footboard with wood-grain panels
• 9-volt emergency backup battery
• Installation hardware with color-coded springs and labels
• Top-mounted high/low crank for manual backup operation

Care Instructions

• Wipe frame and panels with damp cloth and mild detergent; avoid abrasive cleaners to preserve wood-grain finish
• Clean mattress cover according to manufacturer washing instructions; air-dry thoroughly before replacing
• Check motor housing and hand pendant monthly for dust buildup; wipe with dry cloth
• Inspect side rail clamps quarterly to ensure secure attachment; tighten fasteners if needed
• Replace 9-volt backup battery annually or after use during power outage
• Lubricate caster wheels every six months with silicone spray if bed is moved frequently
• Store in dry environment when not in use; avoid exposure to moisture that could corrode zinc coating

Warranty Information

The Drive Delta 1000 includes a limited 5-year warranty on motor and hand control components, a lifetime warranty on welds and frame construction, and a 1-year warranty on all other parts and components. This coverage protects against manufacturing defects under normal home use conditions.

Quality & Compliance

The motor assembly is UL approved for electrical safety in residential environments. Zinc-coated spring deck meets corrosion-resistance standards for medical equipment durability.

FAQs

Q: What is the difference between half rails and full rails?

A: Half rails cover approximately two-thirds of the bed length and clamp onto the frame, while full rails extend the entire length for maximum fall prevention. Both options accommodate the same mattress and frame.

Q: Can I install different headboards and footboards later?

A: Yes, the transition box design allows you to swap bed ends from other manufacturers without replacing the motor or frame. The high-low shaft remains with the bed during headboard changes.

Q: How does the emergency battery backup work?

A: A standard 9-volt battery in the motor housing automatically activates during power failures, providing enough charge to lower head and foot sections nine times. Replace the battery annually for reliable backup.

Q: Is the motor quiet enough for nighttime adjustments?

A: Yes, the self-contained motor design significantly reduces operational noise compared to external motor systems. Adjustments can be made during sleep without causing major disruption.

Q: Can the bed be assembled by one person?

A: While possible, two people make assembly faster and safer. Color-coded springs and labeled components simplify installation. The bed ships in two cartons and requires basic tools.
