Product Description

The Portable Ultrasound US1000 (3rd Edition) is a compact, FDA-approved therapeutic ultrasound unit designed for controlled, localized ultrasound therapy. This device is intended for use with ultrasound gel, which helps transmit ultrasound energy effectively from the sound head to the skin. Its portable design and AC adaptor power source make it suitable for use in clinical settings as well as at home under appropriate guidance.

The unit works by generating deep heat through a piezoelectric crystal sound head. This crystal converts electrical energy into high-frequency vibratory sound waves (ultrasound), which travel into soft tissue. As these sound waves pass through the tissue, they cause cellular vibration, leading to an increase in tissue temperature and the induction of vasodilation. This process supports therapeutic ultrasound applications where controlled deep heating is required.

The US1000 3rd Edition offers three selectable power output settings—low, medium, and high—allowing users to adjust intensity based on application needs. It operates in pulse output mode with defined duty cycles for each power level, providing controlled energy delivery. The device includes an automatic 30-minute timer with auto-off functionality, supporting consistent session management.

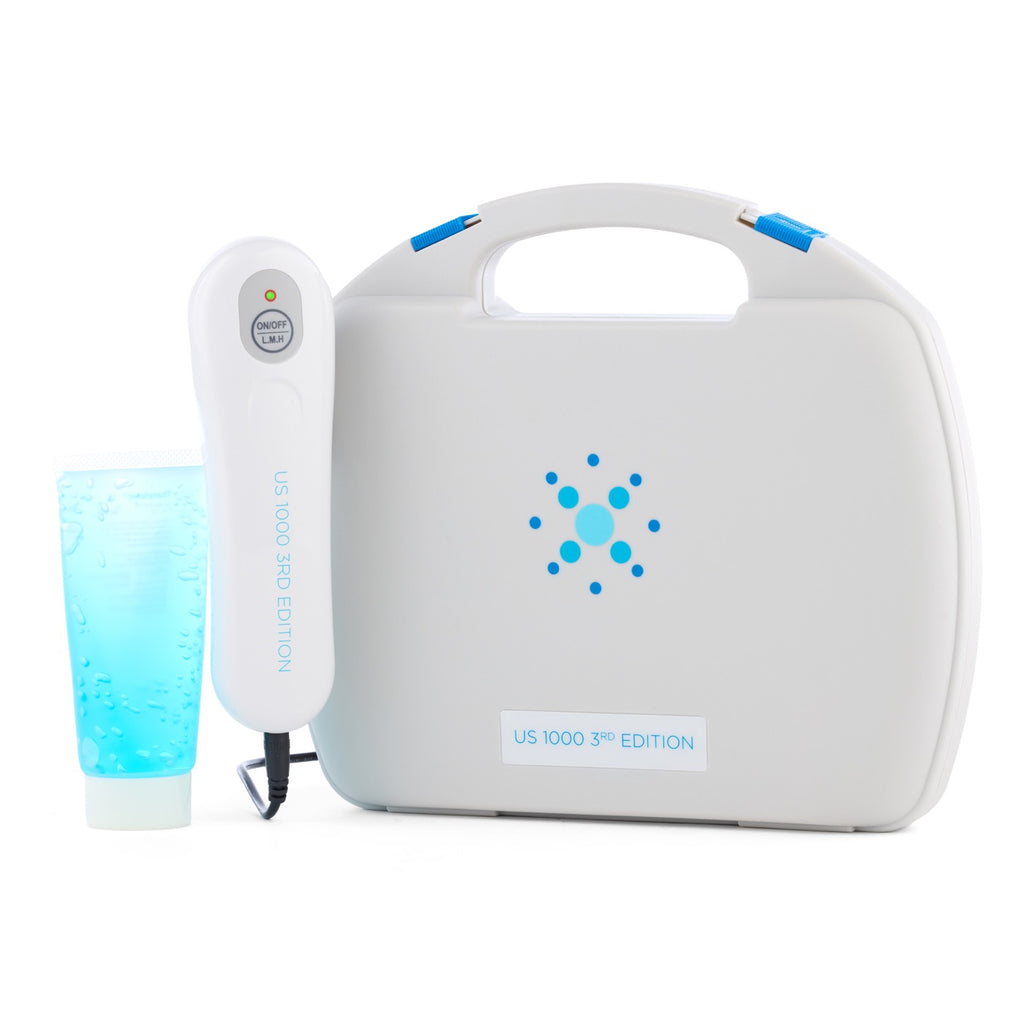

Designed for convenience and portability, the unit is lightweight and supplied as a complete kit. It comes with an ultrasound AC adapter, carrying case, ultrasound gel, and an instruction manual, ensuring the device is ready for use out of the box. A manufacturer warranty of six months on the unit is also included.

Specifications

Usage & Application

  • Therapeutic ultrasound device
  • Must be used with ultrasound gel
  • Generates deep heat through ultrasound energy
  • Causes vibration in soft tissue cells
  • Induces vasodilation through thermal effect

Brand & Product Details

  • Product Name: Portable Ultrasound US1000
  • Edition: 3rd Edition
  • FDA Approved
  • Manufacturer Warranty: 6 months on unit

Design & Build

  • Piezoelectric crystal sound head
  • Converts electrical energy into ultrasound waves
  • Weight of unit: 120 g

Performance & Adjustability

  • Output Frequency: 1.0 MHz ±10%
  • Temporal Maximum Power: 8 W ±10%
  • Output Mode: Pulse
  • Duty Cycle:
  • Low: 7%
  • Medium: 15%
  • High: 30%
  • Pulse Width: 5.4 ms ±10%
  • Repetition Rate: 150 Hz ±10%
  • Timer Setting: 30 minutes auto-off ±1%

Power & Output

  • Power Source: AC adaptor (DC 24V / 200mA)
  • Power Output Settings: 3 levels
  • Low: 1.6 W (0.11 W/cm²)
  • Medium: 2.6 W (0.24 W/cm²)
  • High: 4.6 W (0.47 W/cm²)

Accessories & Packaging

  • Ultrasound AC adapter
  • Carrying case
  • Ultrasound gel
  • Instruction manual
