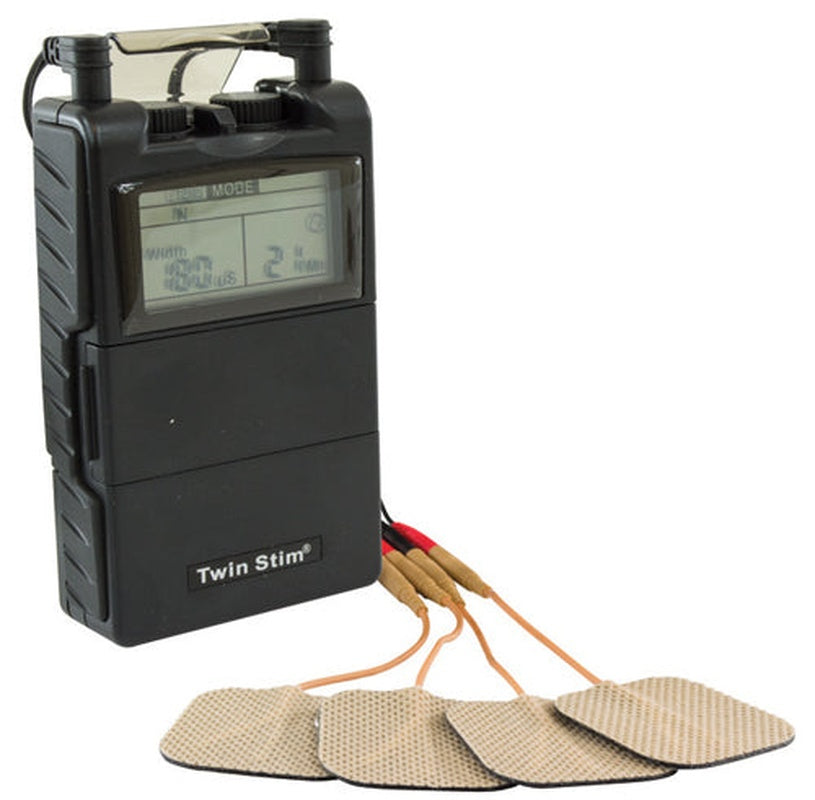

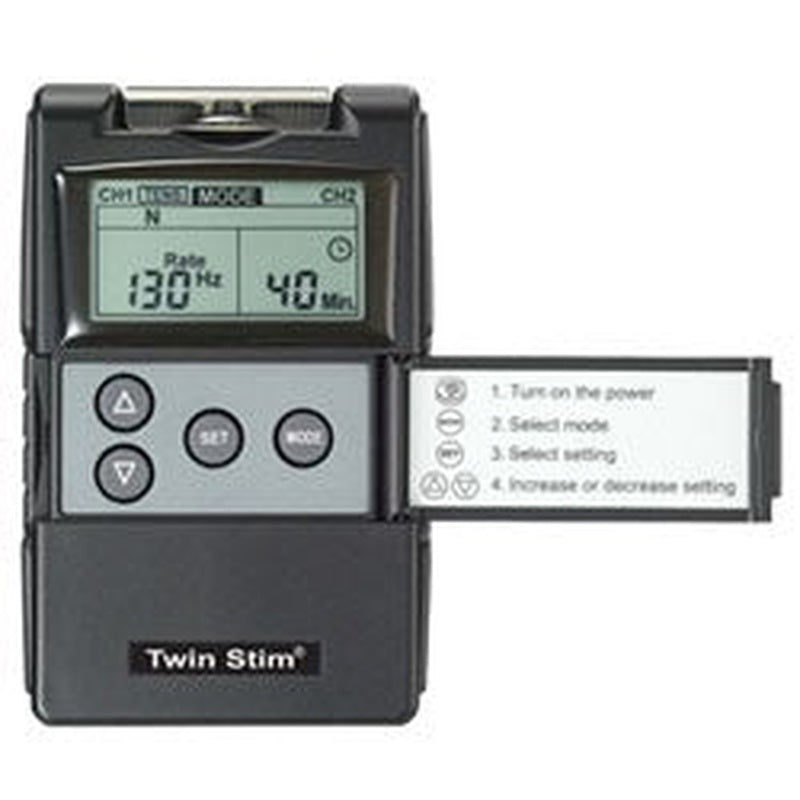

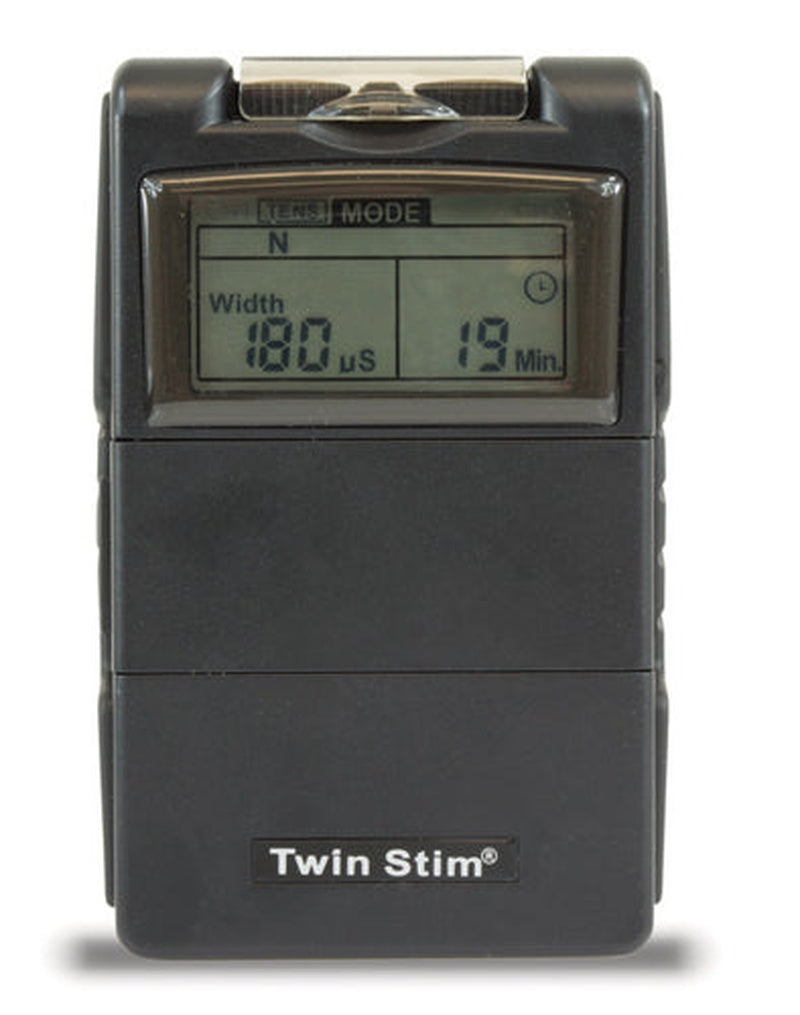

The Twin Stim TENS and EMS Combo is a versatile electrotherapy device designed to support both pain management and muscle stimulation needs in clinical and home environments. By combining TENS (Transcutaneous Electrical Nerve Stimulation) and EMS (Electrical Muscle Stimulation) functions in one unit, it allows users to address discomfort while also engaging targeted muscles for strengthening and rehabilitation.
This dual-channel device provides flexibility through five TENS modes—Burst, Normal, Modulation, SD1, and SD2—offering varied stimulation patterns suited for different pain relief requirements. In addition, it includes two EMS modes—Synchronous and Alternate—designed to support muscle contraction therapy, helping improve muscle performance and recovery when used as directed.
Engineered for controlled and customizable therapy, the Twin Stim delivers a stronger 100 mA output with adjustable pulse width, pulse rate, ramp time, contraction time, and relaxation time. These adjustable settings allow users or healthcare professionals to tailor sessions according to individual comfort levels and therapeutic goals. The built-in timer (1–60 minutes or continuous mode) helps manage session duration efficiently.
For safety and durability, the unit features a safety amplitude cover, sturdy metal belt clip, and rubber side railings for improved grip and handling. The integrated patient compliance meter can store up to 60 sets of operation data, making it especially useful in monitored therapy programs or clinical follow-ups.
Powered by a 9-volt battery and supplied with reusable self-adhesive electrodes, lead wires, a hard plastic carrying case, and an instruction manual, this TENS and EMS combo system is suitable for rehabilitation clinics, physiotherapy centers, sports recovery programs, and individuals seeking structured electrotherapy support.
Specifications
Usage & Application
- Device Type: TENS and EMS Combo Unit
- TENS Modes: Burst / Normal / Modulation / SD1 / SD2
- EMS Modes: Synchronous / Alternate
- Channels: Dual Channel
Brand & Product Details
- Warranty: One Year
- Patient Compliance Meter Storage: Up to 60 Sets of Operation Data
Performance & Adjustability
- Pulse Width: 50–300 µs Adjustable
- Pulse Rate: 2–150 Hz Adjustable
- Pulse Ramp: 1–8 Seconds
- Pulse Amplitude: 100 mA Peak into 500 Ohm Load
- Contraction Time: 2–90 Seconds
- Relaxation Time: 2–90 Seconds
- Wave Form: Asymmetrical Bi-Phase Square Pulse
- Timer: 1–60 Minutes or Continuous Mode
- Power & Output
- Power Source: 9-Volt Battery
- Maximum Output: 100 mA
Design & Build
- Safety Feature: Safety Amplitude Cover
- Clip: Sturdy Metal Belt Clip
- Grip Support: Rubber Side Railings

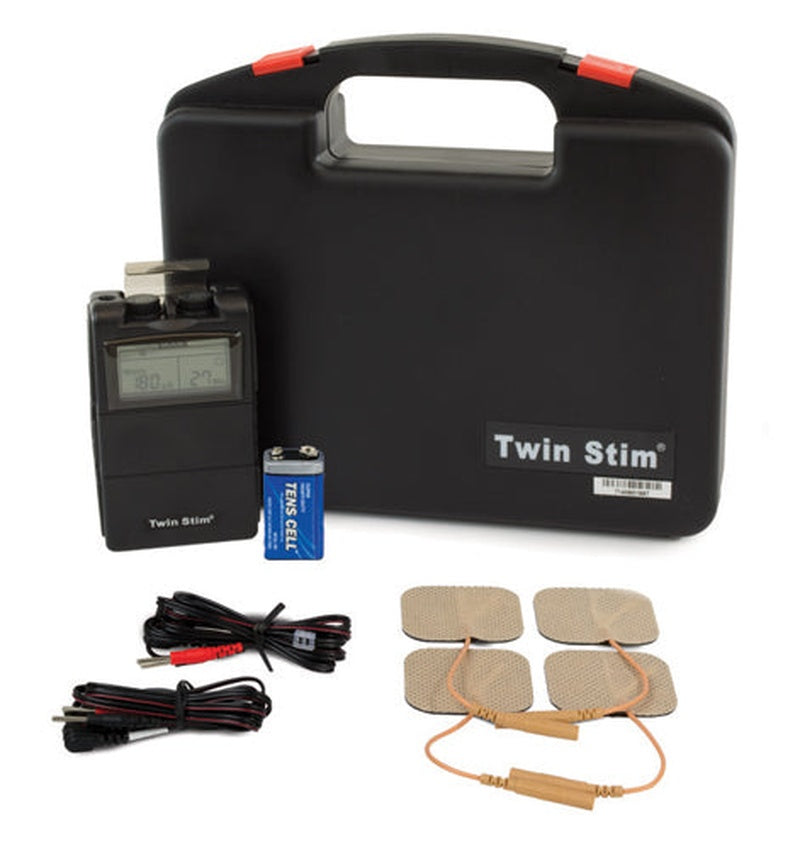

Accessories & Packaging
- Included: Device
- Lead Wires: Yes
- Electrodes: Four Self-Adhesive Reusable Electrodes
- Battery: 9-Volt Battery Included
- Carrying Case: Hard Plastic Case
- Manual: Instruction Manual Included
